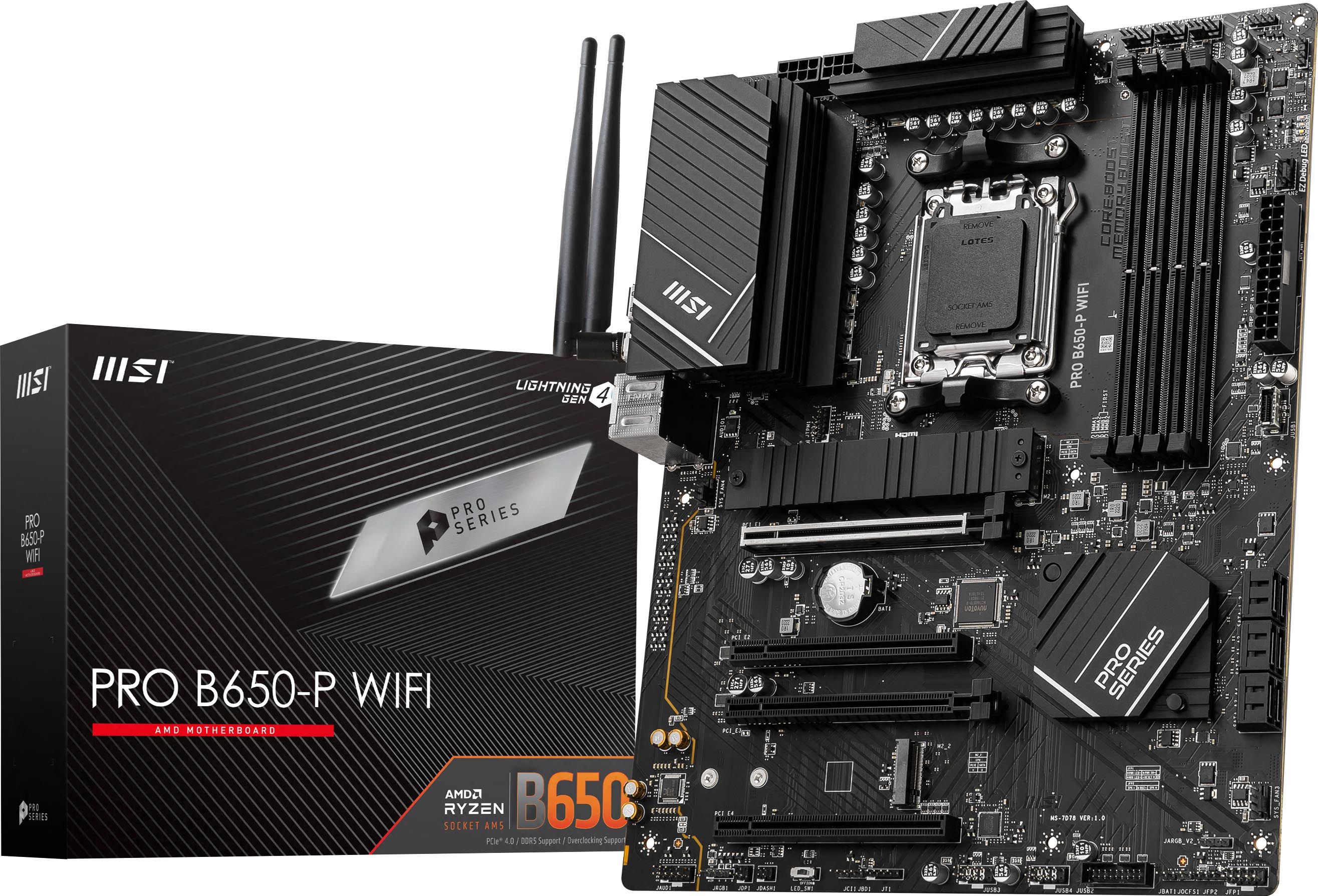

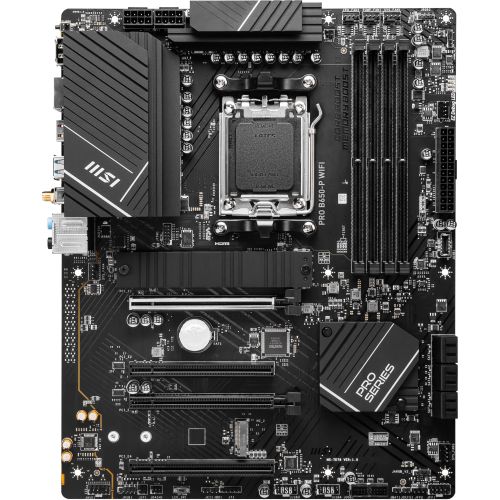

4x PCIe x16 slotsPCI_E1 slot (From CPU, only Raphael support)- Supports up to PCIe 4.0 x16PCI_E2 (From B650 chipset)- Supports up to PCIe 3.0 x1PCI_E3 (From B650 chipset)- Supports up to PCIe 4.0 x4PCI_E4 (From B650 chipset)- Supports up to PCIe 3.0 x1
2 x Key M (PCIe) + 1 x Key E (WiFi/BT)2x M.2 slots (Key M)M2_1 slot (From CPU)- Supports up to PCIe 4.0 x4- Supports 2280/ 22110 storage devicesM2_2 slot (From CPU)- Supports up to PCIe 4.0 x4- Supports 2260/ 2280 storage devices
SATA RAID
Supports RAID 0 and RAID 1 for SATA storage devices*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices* SATAA1~A4 do not support RAID function.
Onboard Audio
Audio Chipset
Realtek ALC897
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
1x Realtek 8125BG 2.5Gbps LAN controlle
Max LAN Speed
2.5Gbps
Wireless LAN
AMD Wi-Fi RZ616- The Wireless module is pre-installed in the M.2 (Key-E) slot- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps- Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth
Supports Bluetooth 5.2*, FIPS, FISMA* Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Rear Panel Ports
Back I/O Ports

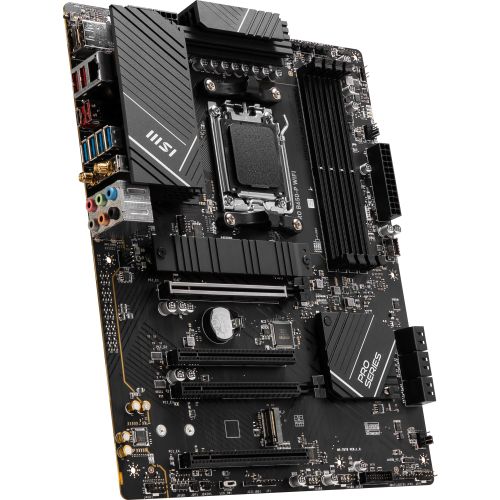

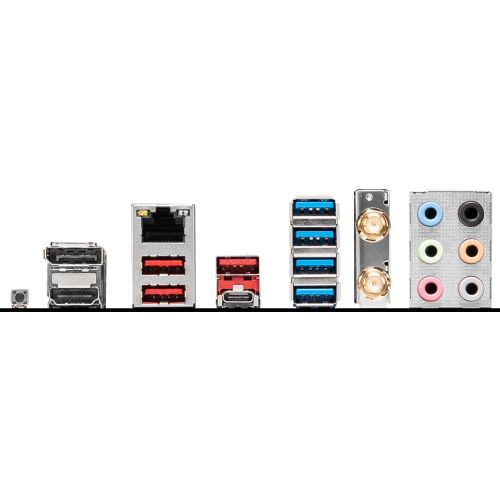

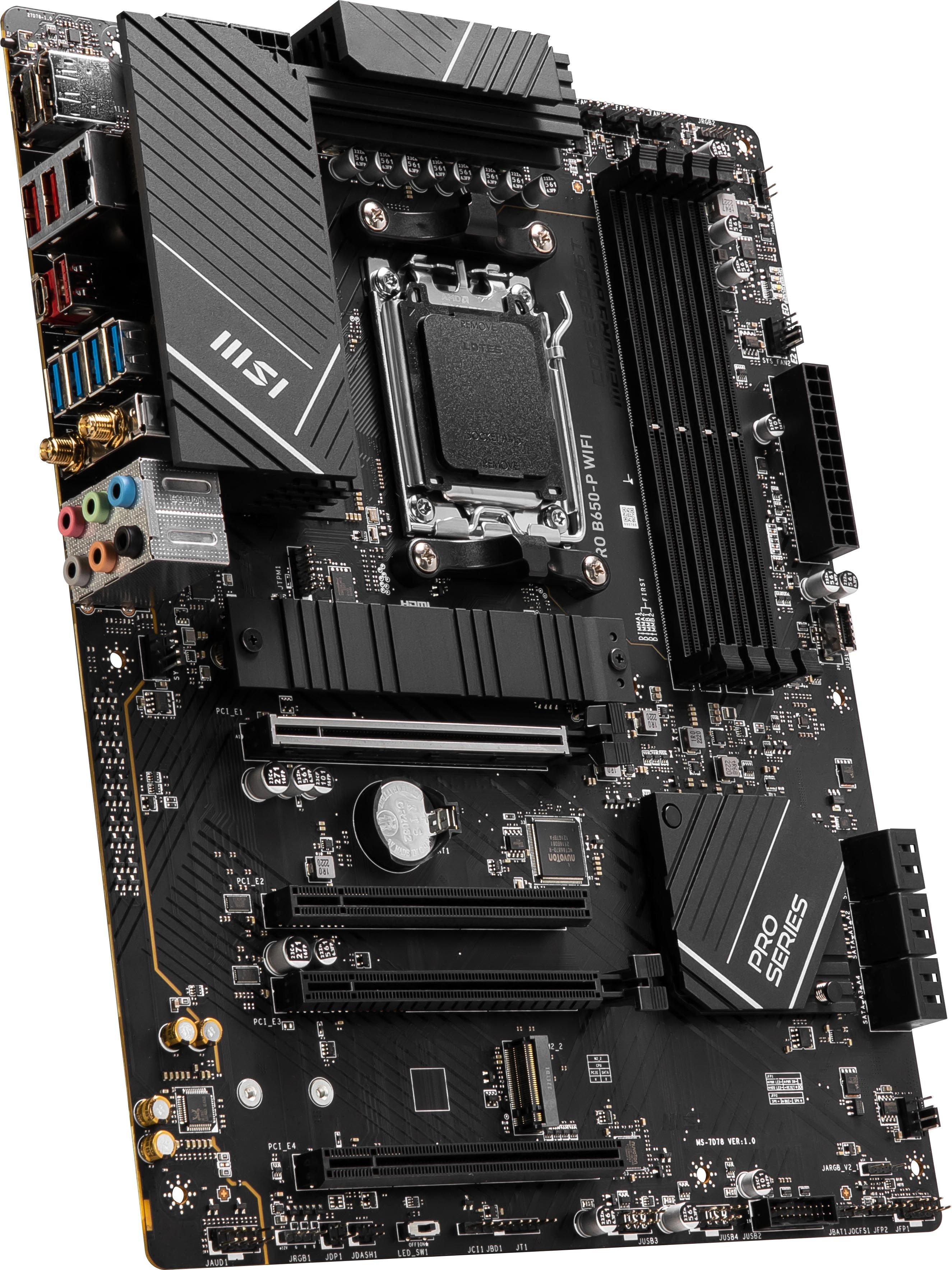

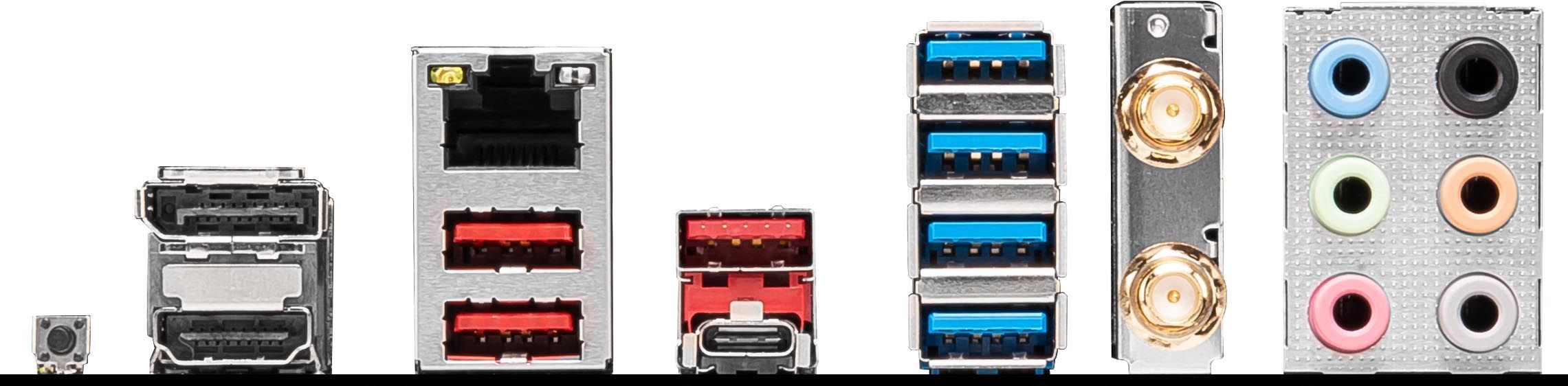

1x Flash BIOS button1x DisplayPort port1x HDMI port4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub-1074)3x USB 3.2 Gen 2 10Gbps Type-A port (From CPU)1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)1x LAN (RJ45) jack2x Wi-Fi Antenna connectors6x Audio jacks
Internal I/O Connectors
Onboard USB
1x USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset)1x USB 3.2 Gen 1 5Gbps connector (From B650 chipset)- Supports additional 2 USB 3.2 Gen 1 5Gbps ports2x USB 2.0 Type-A connectors (From B650 chipset)- Supports additional 4 USB 2.0 ports
Other Connectors
Fan Connectors1x 4-pin CPU fan connector1x 4-pin water-pump fan connector4x 4-pin system fan connectorsSystem Connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x Tuning Controller connectorJumpers1x Clear CMOS jumperLED Features1x EZ LED Control switch2x 4-pin RGB LED connectors2x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors4x EZ Debug LED
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1x 24-pin ATX main power connector2x 8-pin ATX 12V power connectors
Windows 11 Compatibility
Windows 11
Supported
Features
Features
MSI Center- Ambient Link- Frozr AI Cooling- User Scenario- True Color- Live Update- Hardware Monitoring- Super Charger- Devices Speed Up- Smart Image Finder- MSI Companion- System Diagnosis- System Info- Microsoft App- My Device- MSI Display kit- Smart Fan Control- Mystic Light (Sync & control)Thermal Features- Extended Heatsink Design- M.2 Shield Frozr- K7 MOSFET thermal pad/ Extra choke pad- Fan headers (CPU + PUMP + SYSTEM)Performance- Core Boost- VRM Power Design- Dual CPU Power- Memory Boost- Lightning Gen 4 PCI-E/ M.2 Slot- Front USB Type-C- 2oz Copper thickened PCBDIY Friendly- PCI-E Steel Armor- EZ M.2 Clips- EZ DEBUG LED- EZ LED Control- Flash BIOS ButtonRGB Soupport- Mystic Light Extension (RGB)- Mystic Light Extension (A-RAINBOW V2)- Ambient Devices SupportBIOS Features- Dual BIOS- 2x 256 Mb flash- UEFI AMI BIOS- ACPI 6.4, SMBIOS 3.4- Multi-language
Additional Information
Date First Available
October 10, 2022
