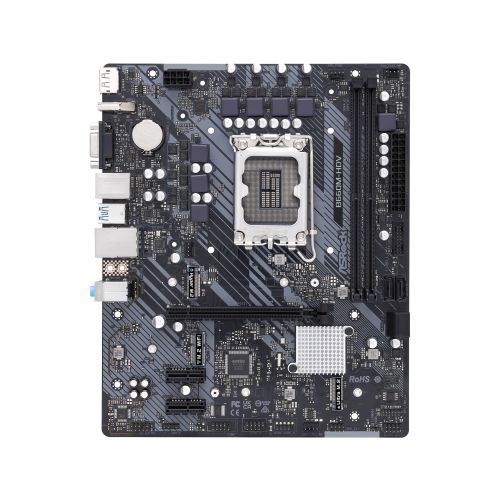

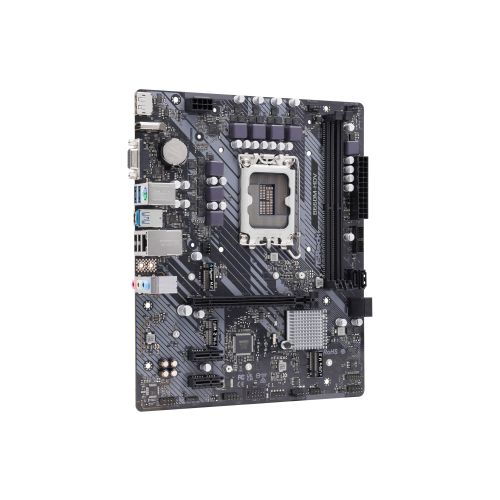

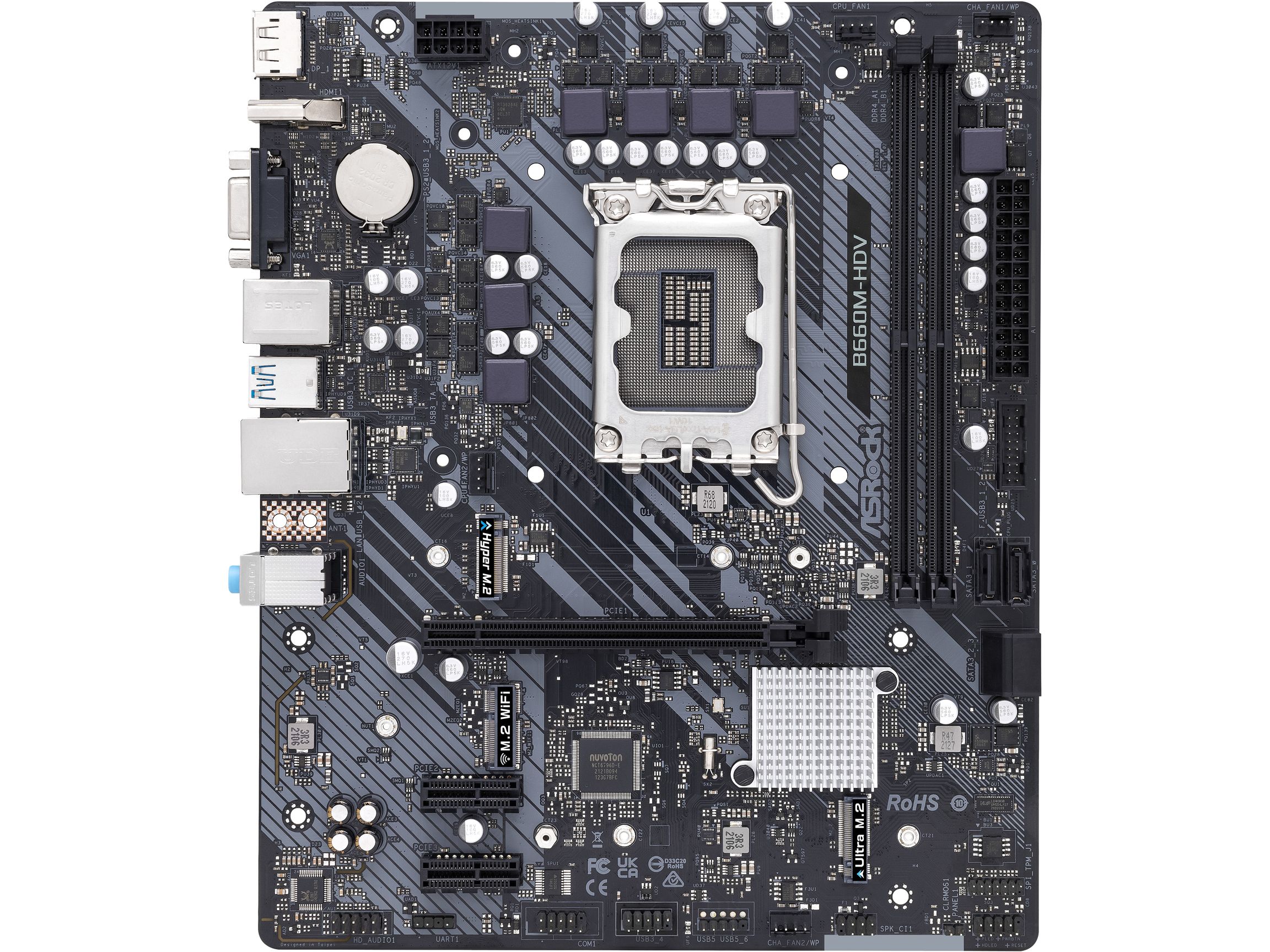

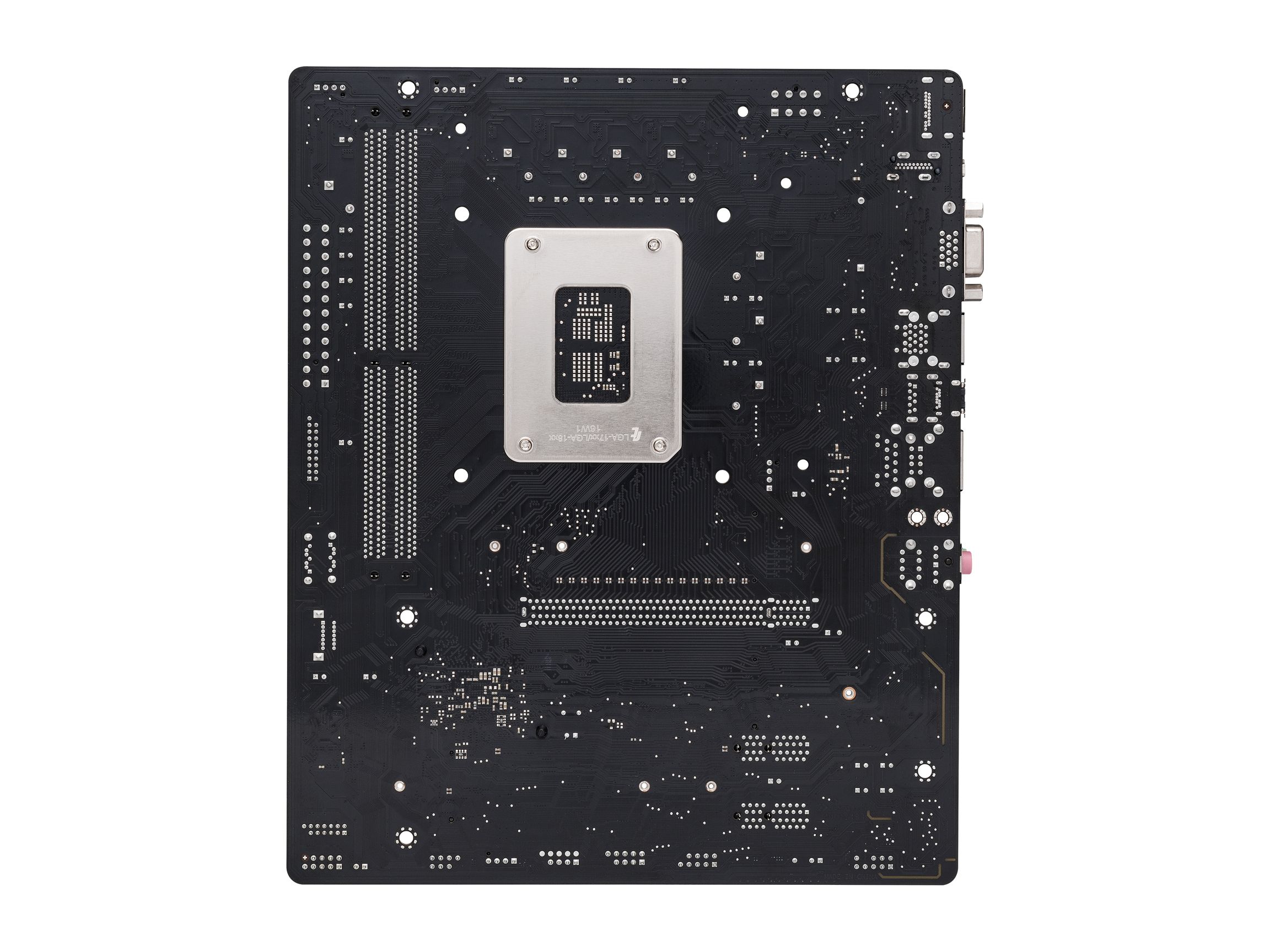

ASRock B660M-HDV, DDR4, Dual M.2, PCIe 4.0, GB LAN, USB 3.2, USB C
Product Info

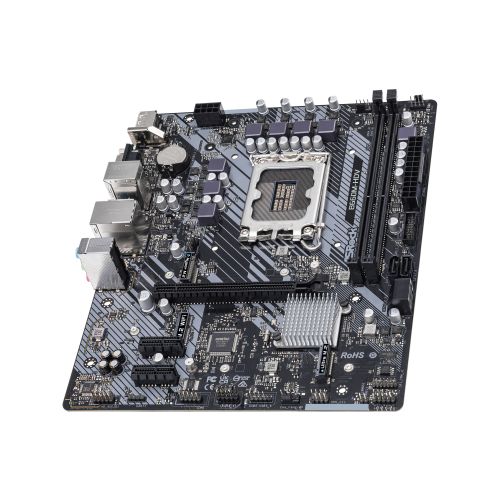

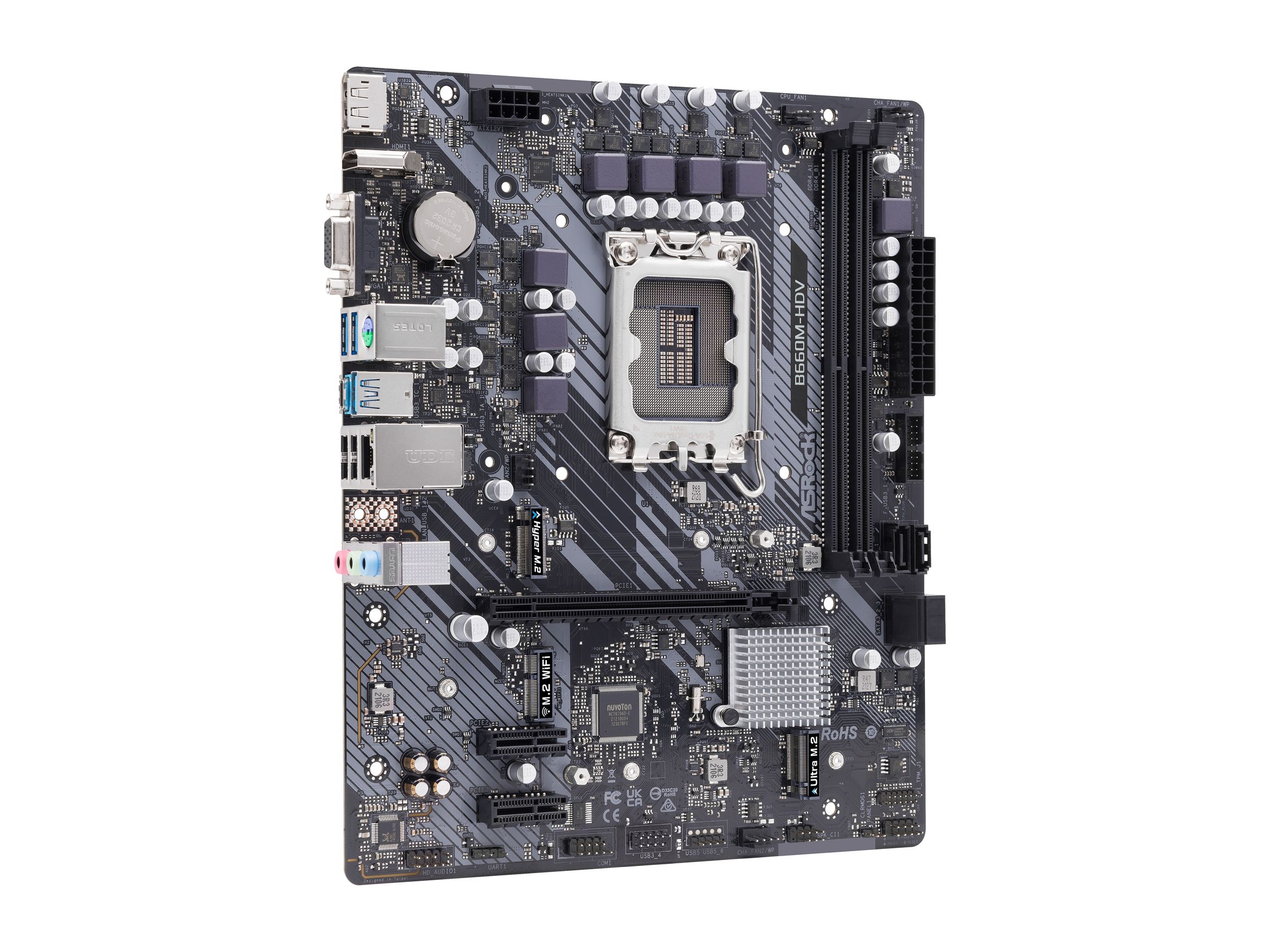

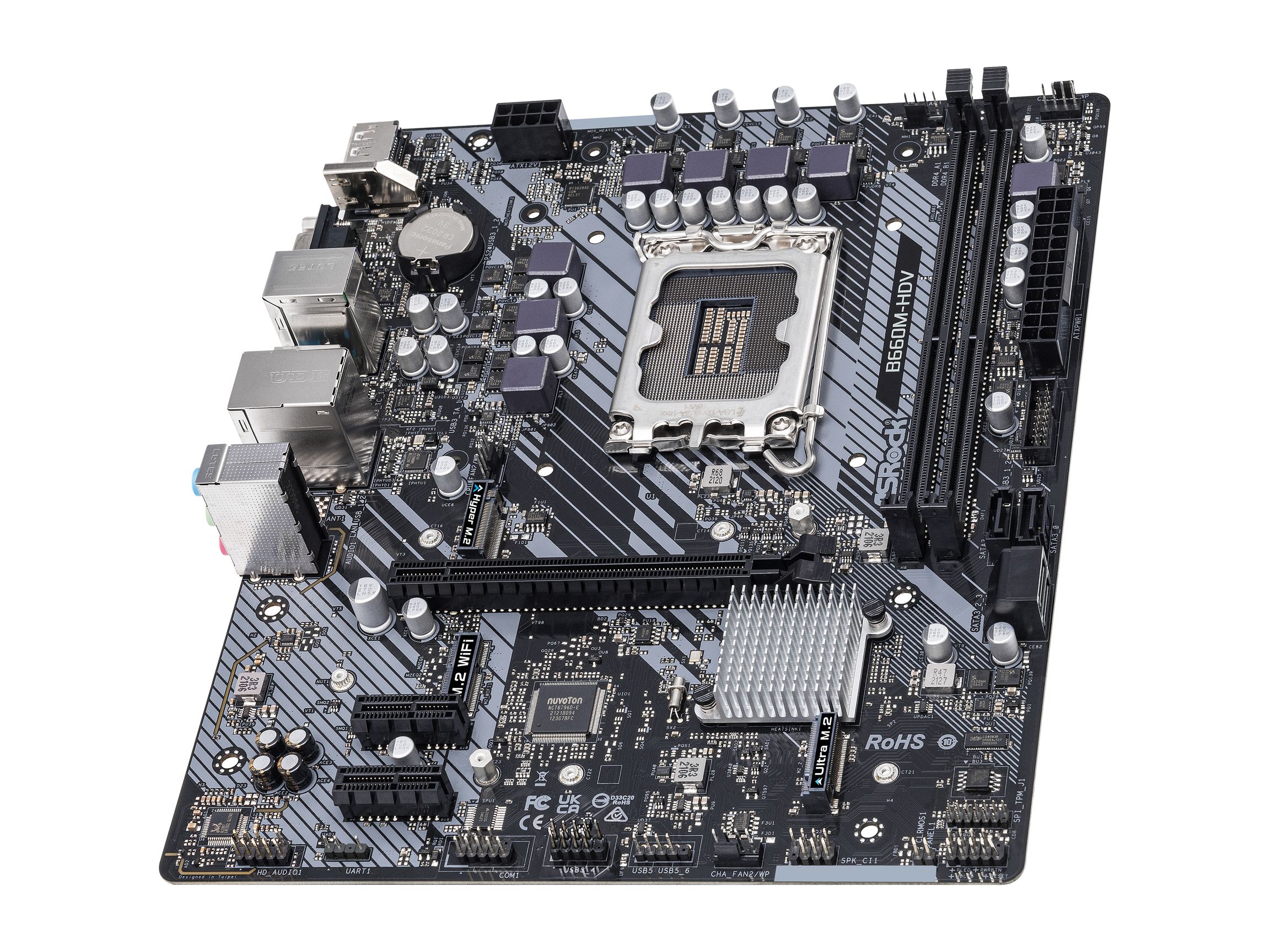

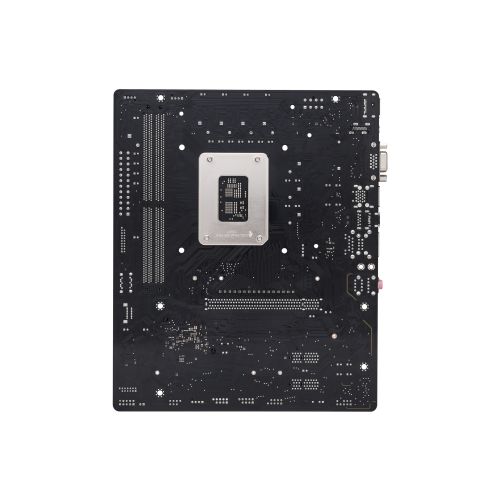

ASRock B660M-HDV, DDR4, Dual M.2, PCIe 4.0, GB LAN, USB 3.2, USB C
Model
Brand
ASRock
Model
B660M-HDV
Supported CPU
CPU Socket Type
LGA 1700* Dedicated LGA1700 mounting bracket is required.
CPU Type
Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.*
Supported CPU Technologies
Turbo Boost Technology 3.0
Chipsets
Chipset
Intel B660
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 5066+(OC)** Supports DDR4 3200 natively.* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 4.0 x16
1 x PCI Express 4.0 x16* Supports NVMe SSD as boot disks.
PCI Express x1
2 x PCI Express 3.0 x1
Other Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
M.2
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** Supports Intel Optane Technology (M2_2 only).* Supports Intel Volume Management Device (VMD).* Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC897/887
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
10/100/1000Mbps

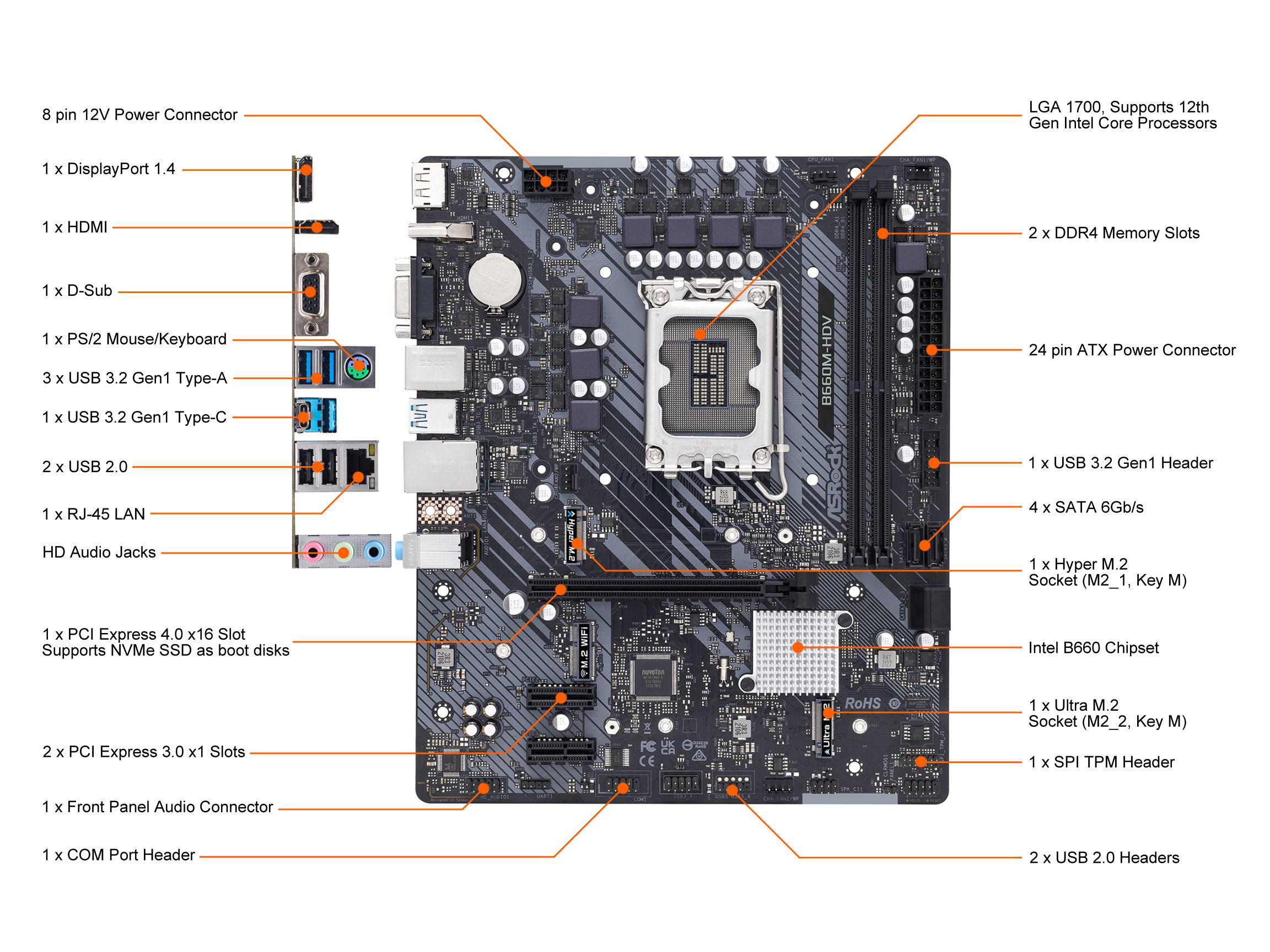

Rear Panel Ports
Back I/O Ports

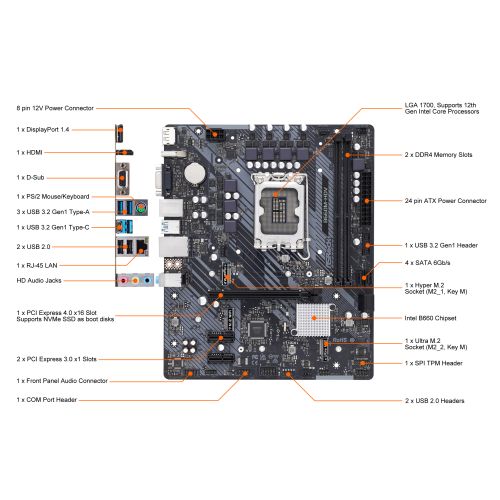

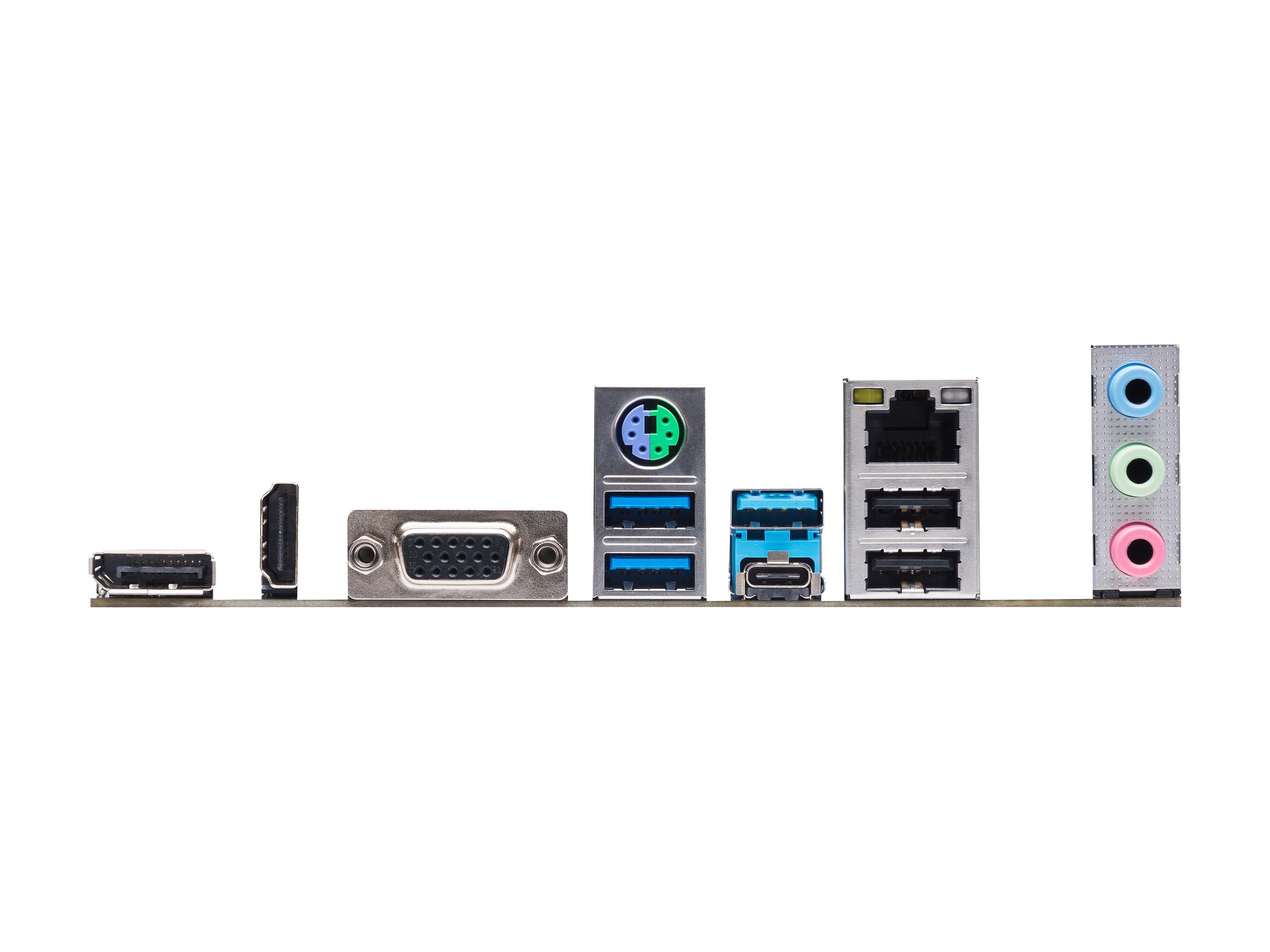

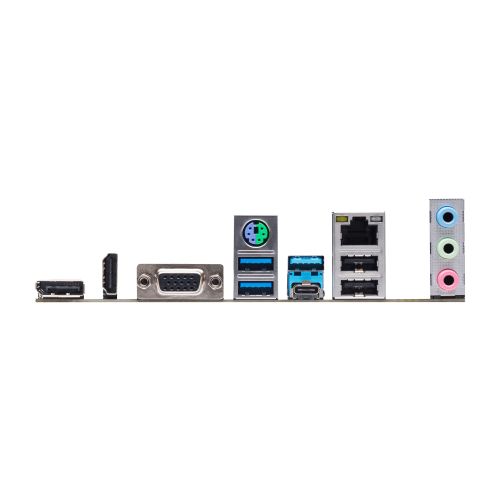

1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.43 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)2 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors
1 x COM Port Header1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.* CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.1 x Front Panel Audio Connecto
Physical Spec
Form Factor
Micro ATX
LED Lighting
None RGB
Dimensions (W x L)
9.6" x 7.9"
Power Pin
1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connecto
Windows Compatibility
Windows 11
Ready
Features
Features
Unique Feature:ASRock Super Alloy- Premium Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Hyper M.2 (PCIe Gen4x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS Feature:- 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustmentSupport CD:- Drivers, Utilities, AntiVirus Software (Trial Version)Software and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN* These utilities can be downloaded from ASRock Live Update & APP Shop.UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID InstallerHardware Monitor:- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3VOS:- Microsoft Windows 10 64-bit / 11 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging

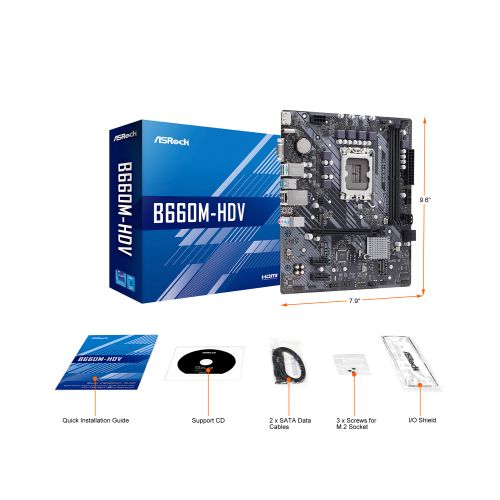

Package Contents

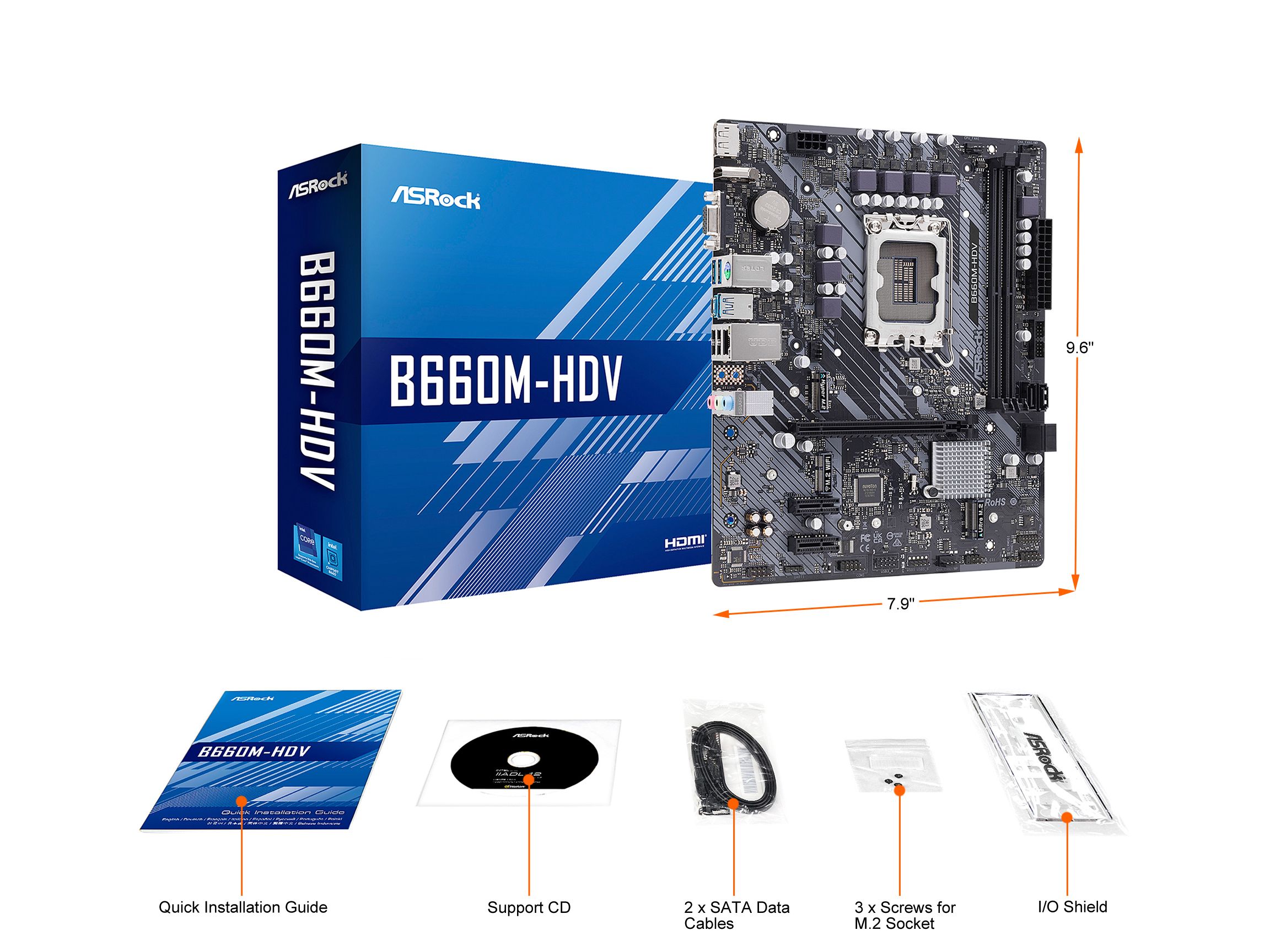

Accessories:- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets
Additional Information
Date First Available
January 17, 2022
