ASUS Prime Z790-P WiFi 6E, DDR5, Quad M.2, PCIe 5.0, USB 3.2, USB Type-C, WiFi 6, Bluetooth 5.2
Product Info
ASUS Prime Z790-P WiFi 6E, DDR5, Quad M.2, PCIe 5.0, USB 3.2, USB Type-C, WiFi 6, Bluetooth 5.2
Model
Brand
ASUS
Series
Prime
Model
PRIME Z790-P WIFI
Part Number
90MB1CJ0-M0AAY0
Supported CPU
CPU Socket Type
LGA 1700
CPU Type
Supports 13th Gen Intel Core & 12th Gen Intel Core Processors, Pentium Gold , Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel Z790
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Supports DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Supports Intel Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported
192GB
Channel Supported
Dual Channel

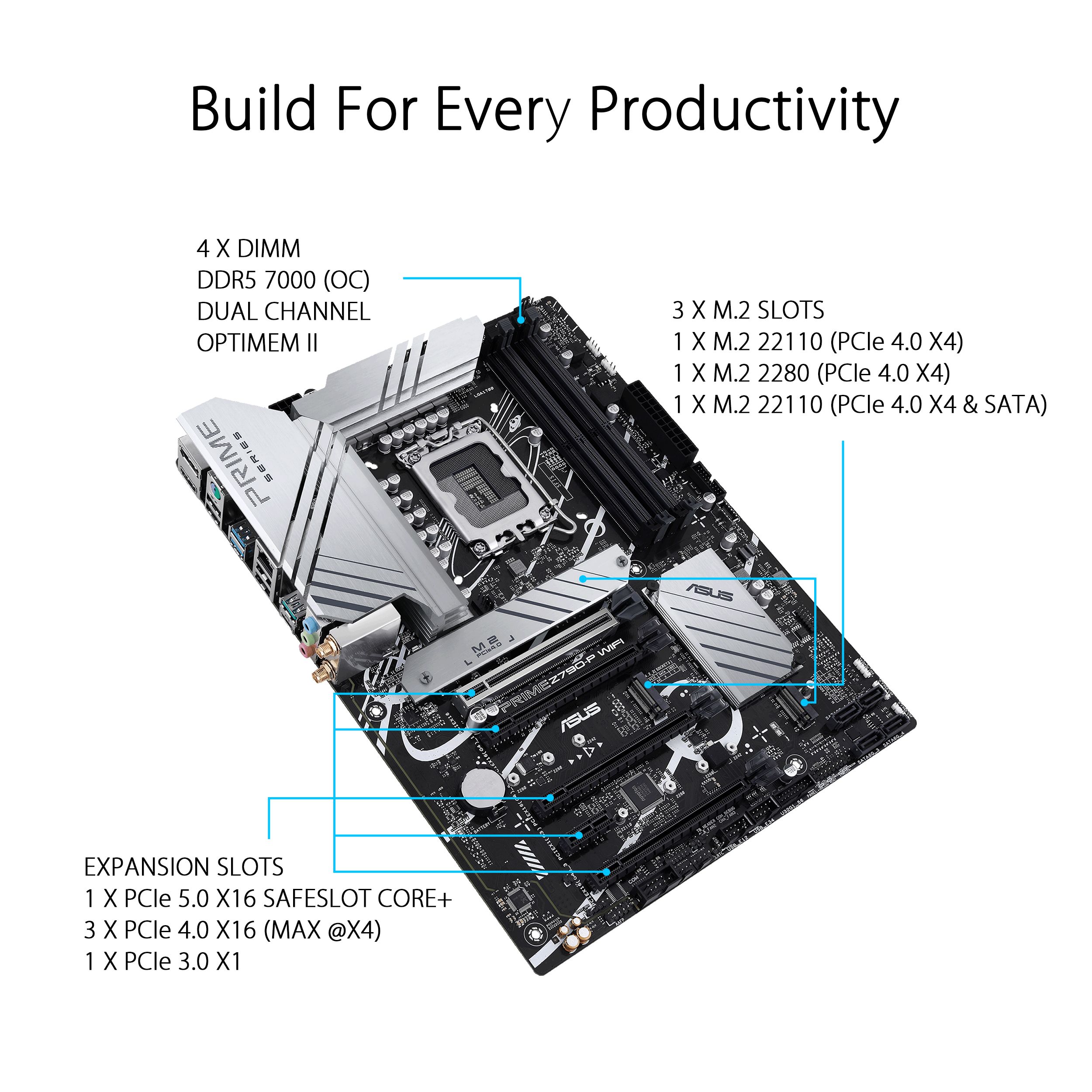

Expansion Slots
PCI Express 5.0 x16
1 x PCIe 5.0 x16 slot** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
PCI Express 4.0 x16
3 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x1
1 x PCIe 3.0 x1 slot
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
Intel 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)Intel Z790 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features - Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
1 x Realtek 2.5Gb Ethernet
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Bluetooth
Bluetooth v5.2
Rear Panel Ports

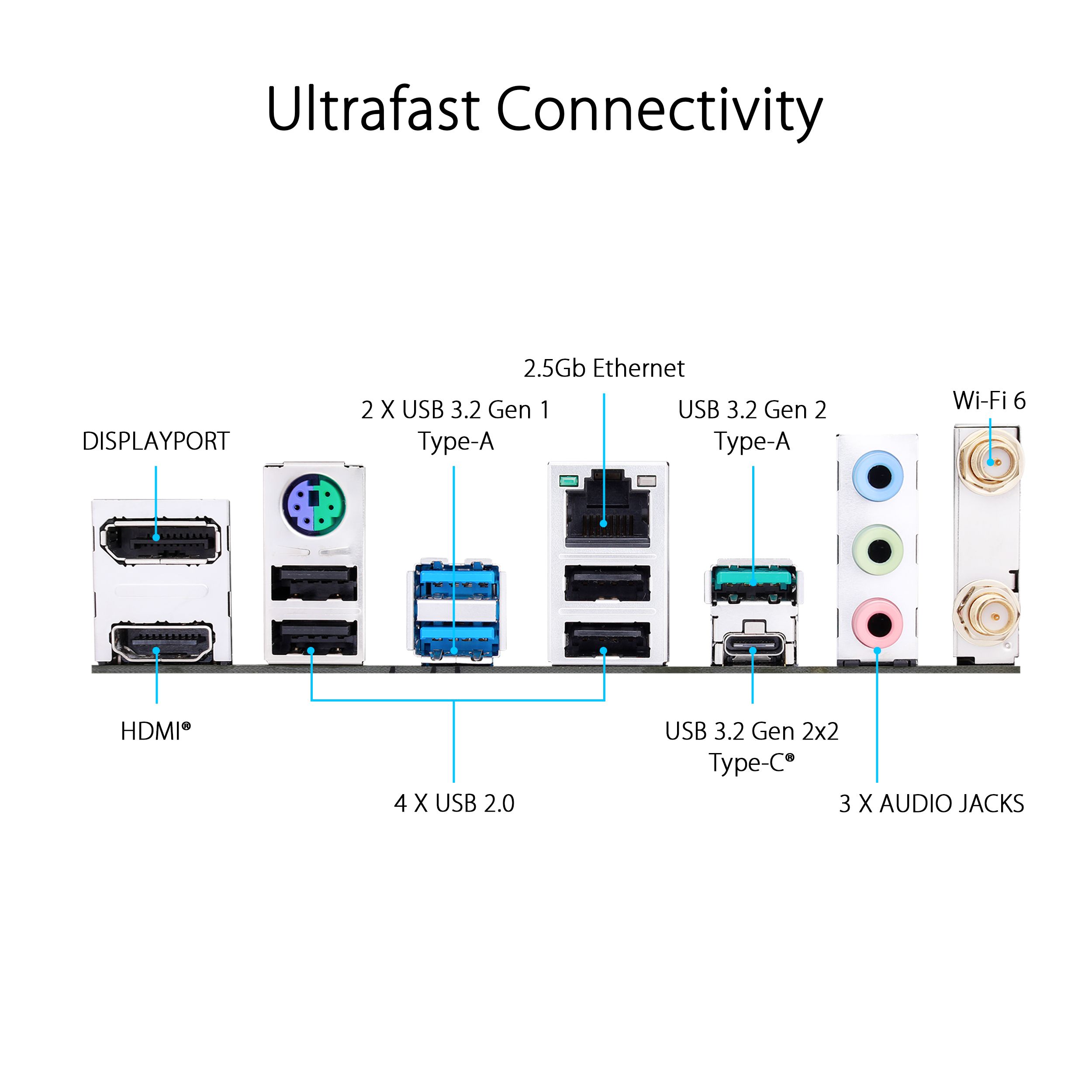

Back I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)1 x USB 3.2 Gen 2 port (1 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Other Connectors

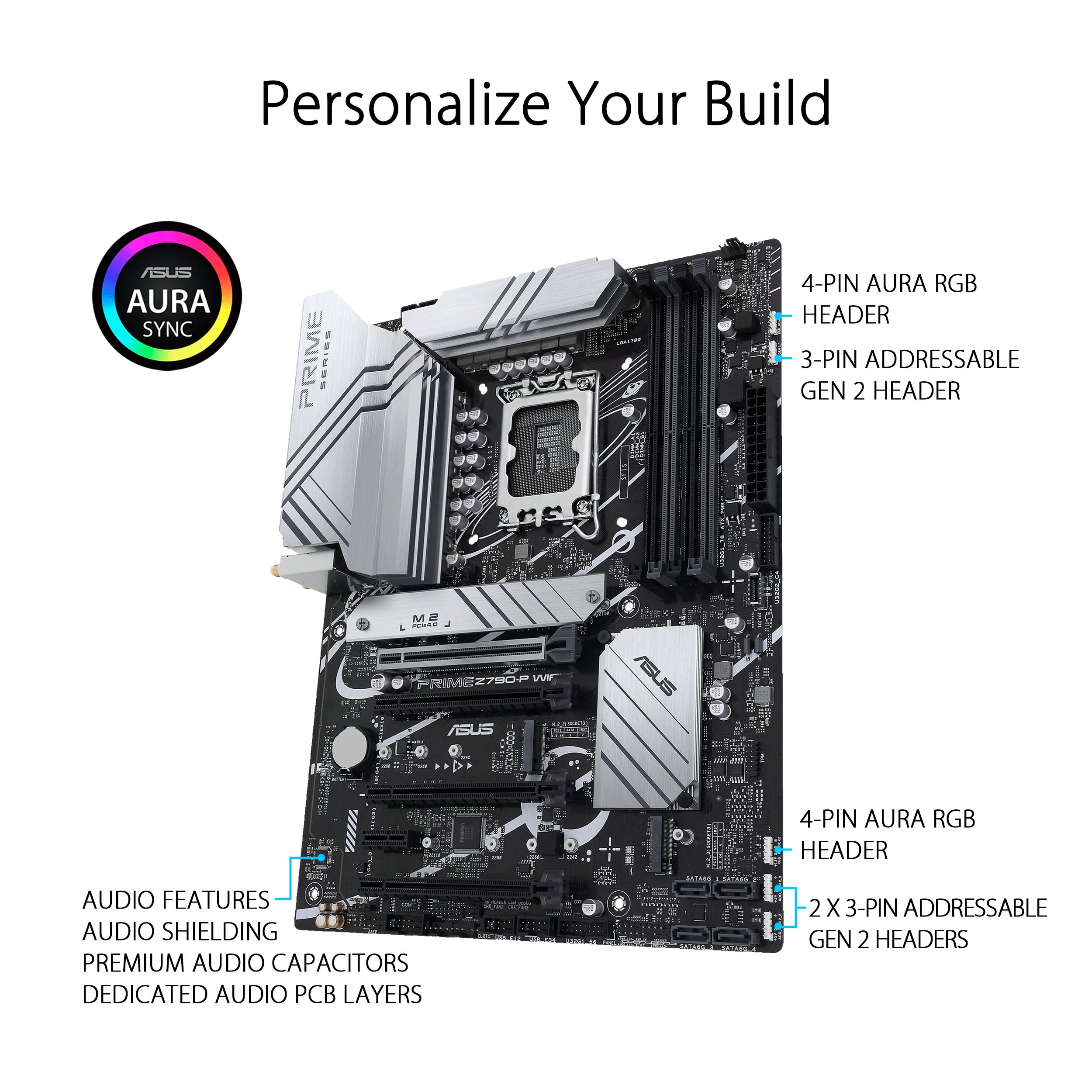

Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsMiscellaneous3 x Addressable Gen 2 headers2 x Aura RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-5pin System Panel header1 x Thunderbolt heade
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connecto
Windows Compatibility
Windows 11
Supported
Features
Features

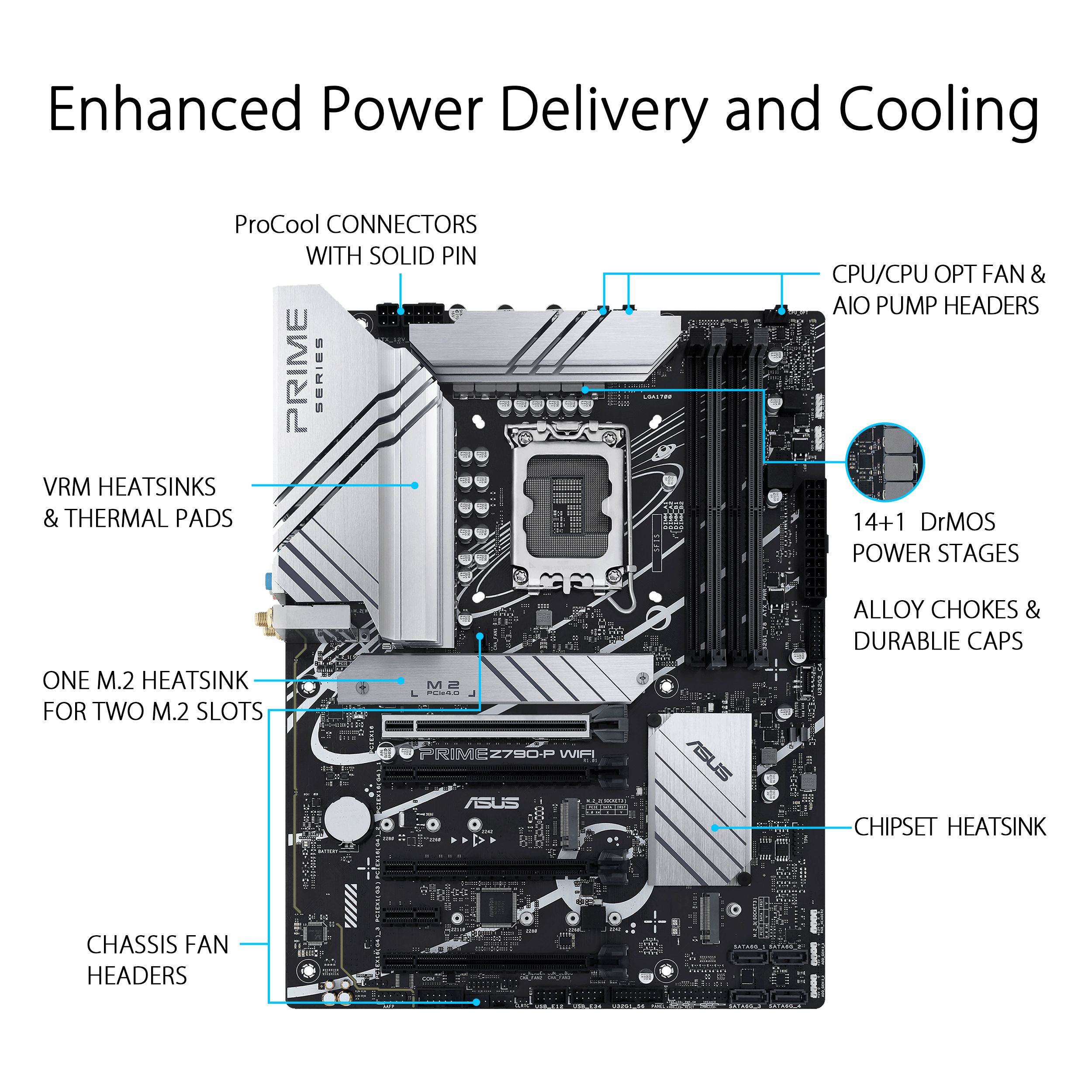

ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard - Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design - Q-DIMM- Q-Slot- Q-LED CoreASUS Thermal Solution- Flexible M.2 heatsink - VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB headers- Addressable Gen 2 headers
Packaging
Package Contents
Cables2 x SATA 6Gb/s cables Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package2 x Screw packages for M.2 SSDDocumentation1 x User guide
Additional Information
Date First Available
September 27, 2022
