AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors(Please refer "CPU Support List" for more information.)
Chipsets
Chipset
AMD X670
Memory
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Maximum Memory Supported
192GB
Channel Supported
Dual Channel
ECC Supported
Non-ECC
Expansion Slots
PCI Express 4.0 x16
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)(Note) Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)4 x SATA 6Gb/s connectors
SATA RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Channels
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Onboard LAN
Max LAN Speed
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LAN
Realtek® Wi-Fi 6E RTL8852CEWIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
Bluetooth
Yes
Rear Panel Ports

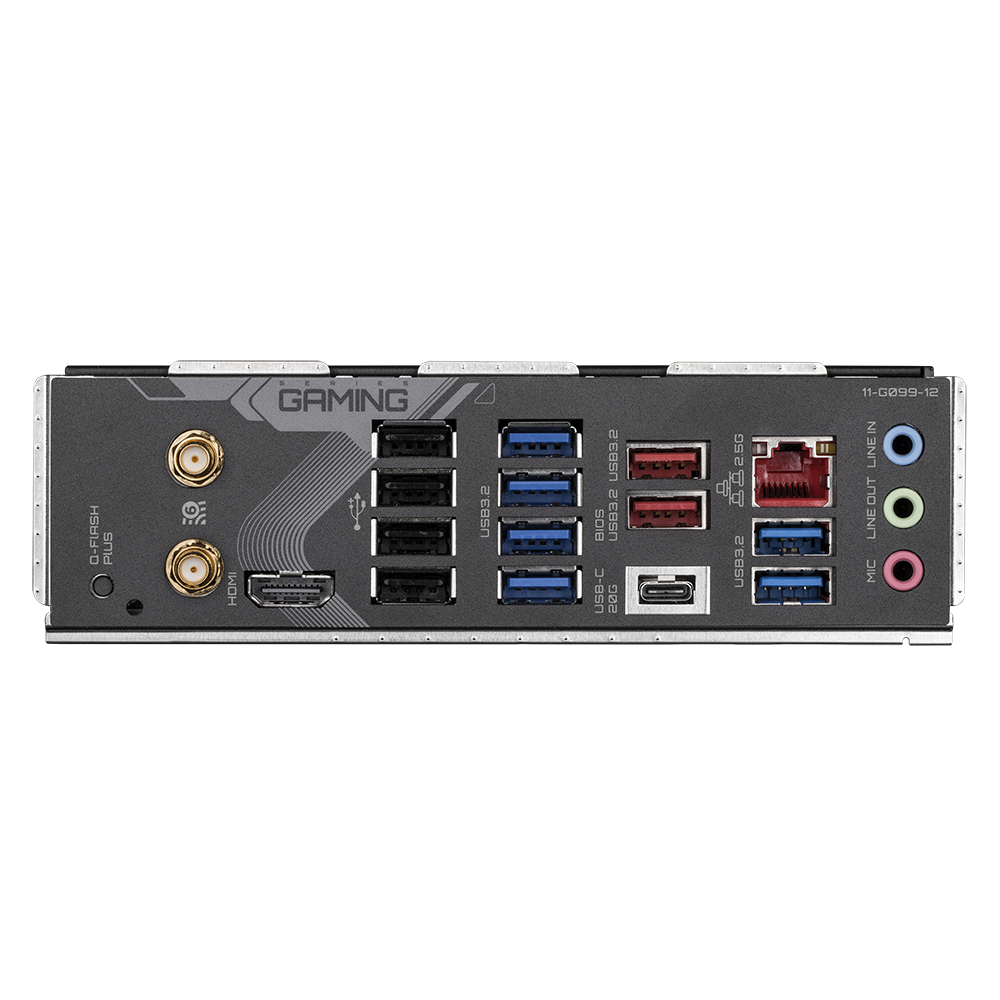

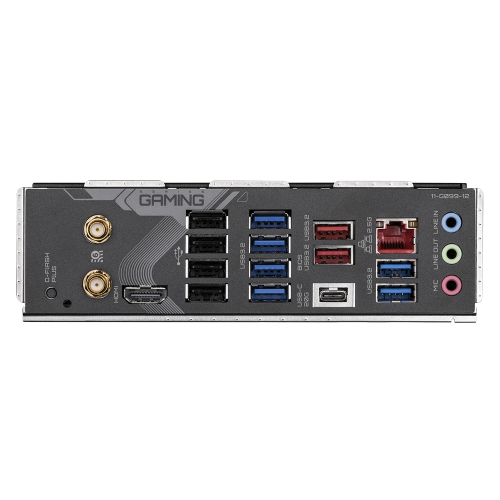

Back I/O Ports
1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x HDMI port6 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support1 x RJ-45 port3 x audio jacks
Internal I/O Connectors
Other Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumpe
Physical Spec
Form Factor
ATX Form Factor;
Dimensions (W x L)
30.5cm x 24.4cm
Windows 11 Compatibility
Windows 11
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Features
Features
AMD Socket AM5:Supports AMD Ryzen™ 7000 Series ProcessorsUnparalleled Performance:Twin 14*+2+2 Phases Digital VRM SolutionDual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module SupportNext Generation Storage:1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 ConnectorsMega-Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD PerformanceEZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless DesignFast Networks:2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity:HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC SupportSmart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card* 7+7 phases parallel power design
Additional Information
Date First Available
November 17, 2023
