Top: 2 x 120mm fan (Optional) Bottom: 2 x 120mm fan (Optional)Side: 2 x 120mm fan (Optional)Rear: 1 x 120mm fan (Optional)
Radiator Options
Top / side– Up to 240mm; Rear x 120mm
Dimensions & Weight
Max GPU Length
340 mm
Max CPU Cooler Height
160 mm
Max PSU Length
200 mm
Dimensions (H x W x D)
15.4" x 11" x 14.4"
Weight
11.5 lbs.
Additional Info
Features

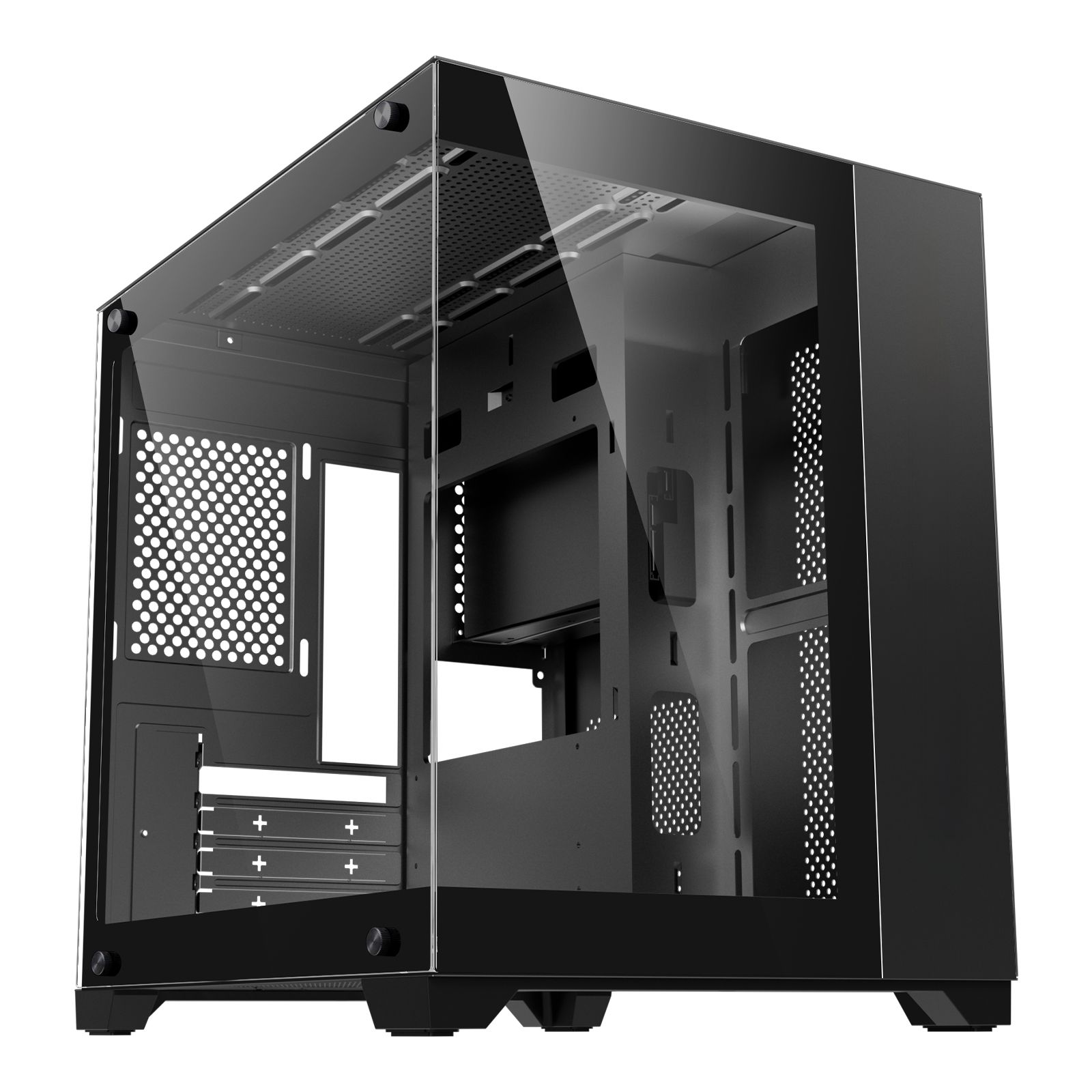

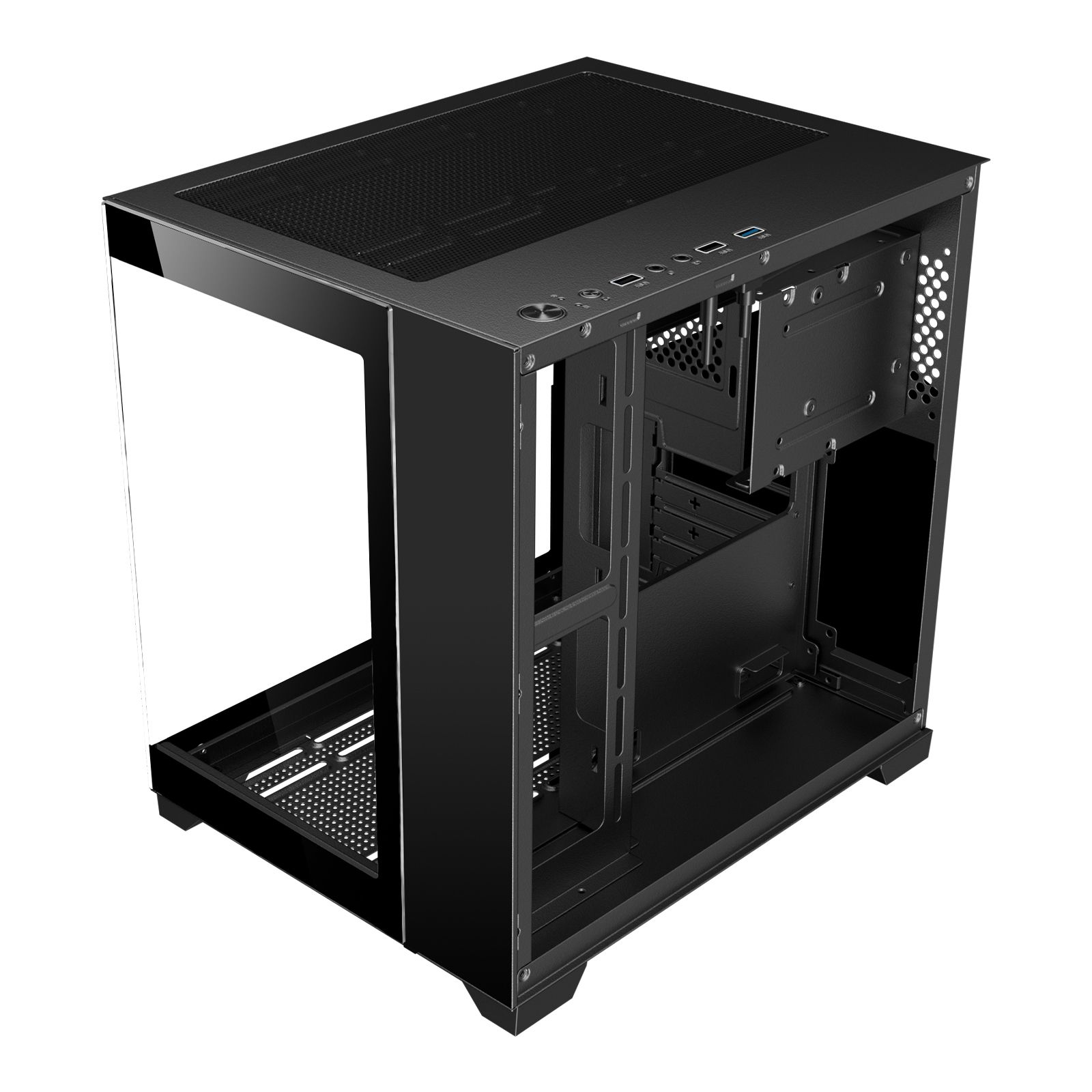

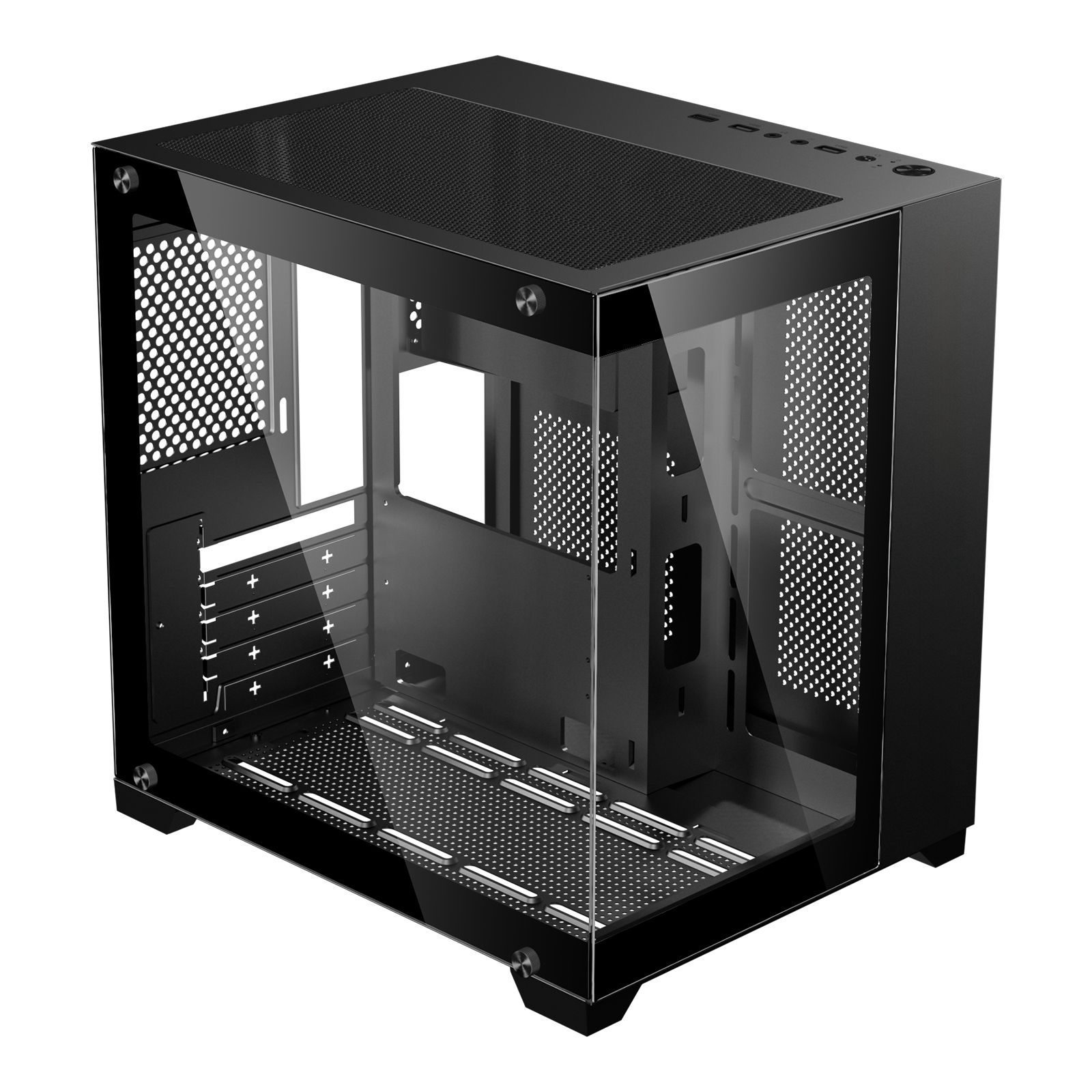

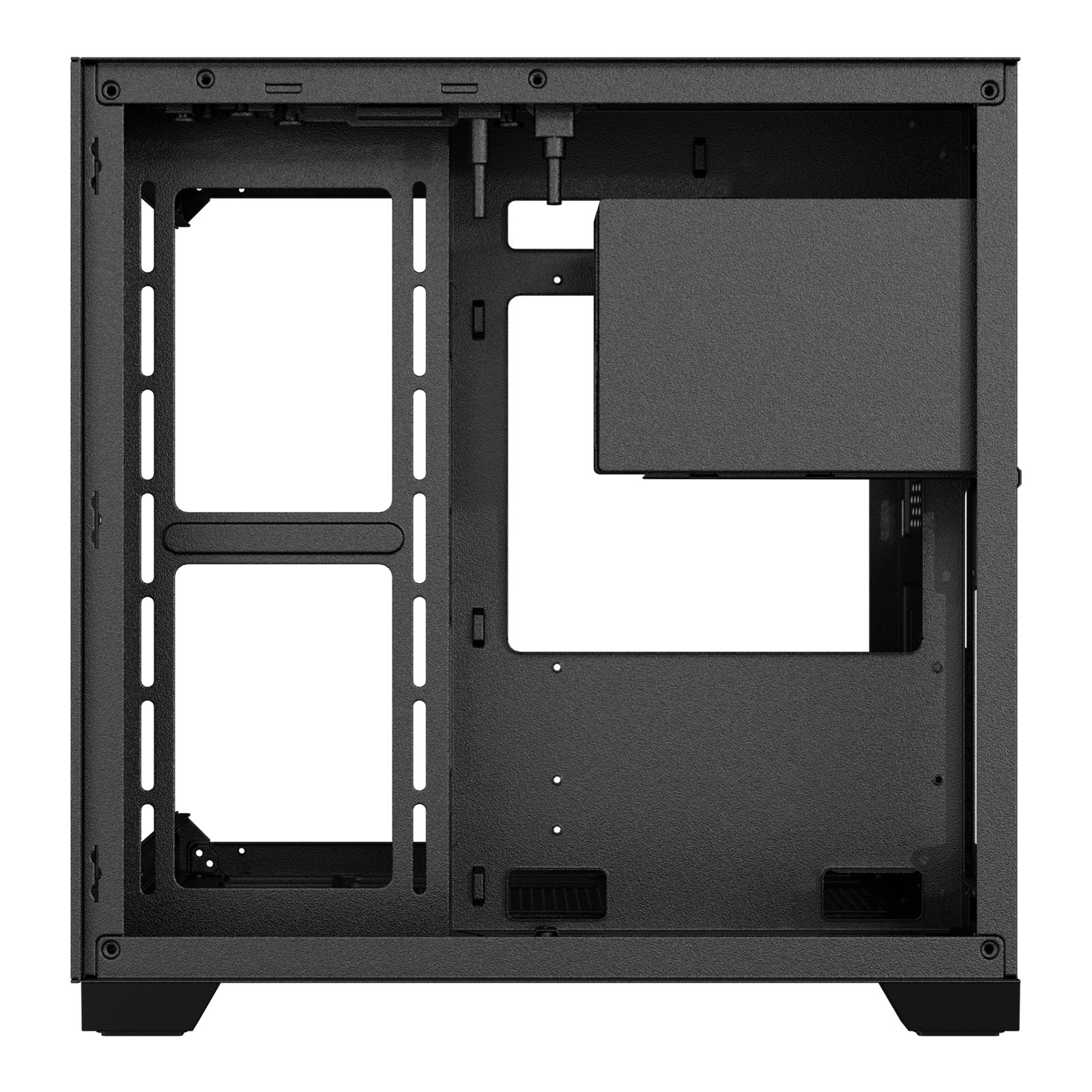

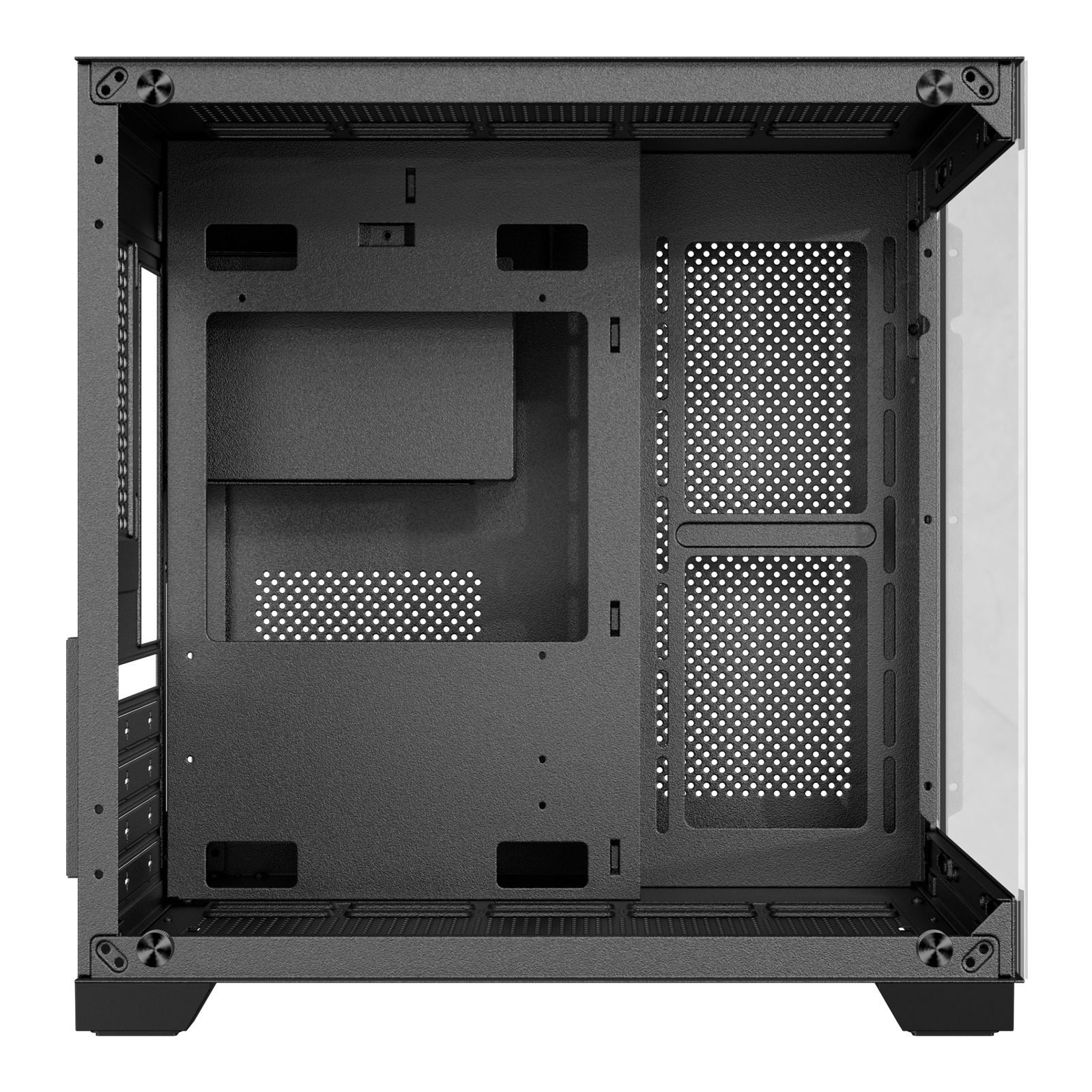

DIYPC DIY-CUBE01-BK is a panoramic Micro-ATX case with a 360 view of your masterpiece for building high-performance system. It has front and side tempered glass panel, w/top mesh design allow optimized air flow. The case’s design has bigger interior space to accommodate and improve cooling performance (can support up to 340mm x GPU and 240mm radiator x top/side). It supports up to 200mm long full ATX power supply to run the most power hungry system.Advanced cable management design – routing the main cable is easy and quick through a hidden channel.There is a large space behind the motherboard for all cables, making the case a clean and beautiful look. Water cooling ready – Top /side support 240mm , rear support 1 x 120mm radiatorAdvanced bottom-mounted power supply designTop mounted IO ports - USB 3.0 for up-to-date high speed data transfer7 fans capability (Optional 2 x 120mm fan x side, Bottom: 2 x 120mm fan, Top: 2 x 120mm fan, 1 x 120mm Fan x rear ) provide great cooling and gaming performanceMagnetic dust filter at top - easy cleanSupport up to 160mm CPU coolerSupport up to 340mm VGA card
Additional Information
Date First Available
December 15, 2023
